CultiDISC | PRO

TRAILED COMPACT DISC HARROW FOR CUT AND MIXING IN DEPTH

5-22cmDepth

+180cvPower

4,30-7,30mWorking Width

10-15km/hSpeed

Back

"Create an intensive cut and mix down to 22cm depth"

Depth Performance Reliability

PRO-Level tillage and stubble

The CultiDISC | PRO is a trailed compact disc harrow with 72cm (28") discs. It is intended for crops that require the management and incorporation of large amounts of residues or stubble, especially from corn, as well as working the entire surface layer, particularly in initial tasks.

In a single pass, we leave a completely mixed soil to a depth of 22cm, which promotes the decomposition of residues and creates a deeper layer of prepared soil.

PROactive Design

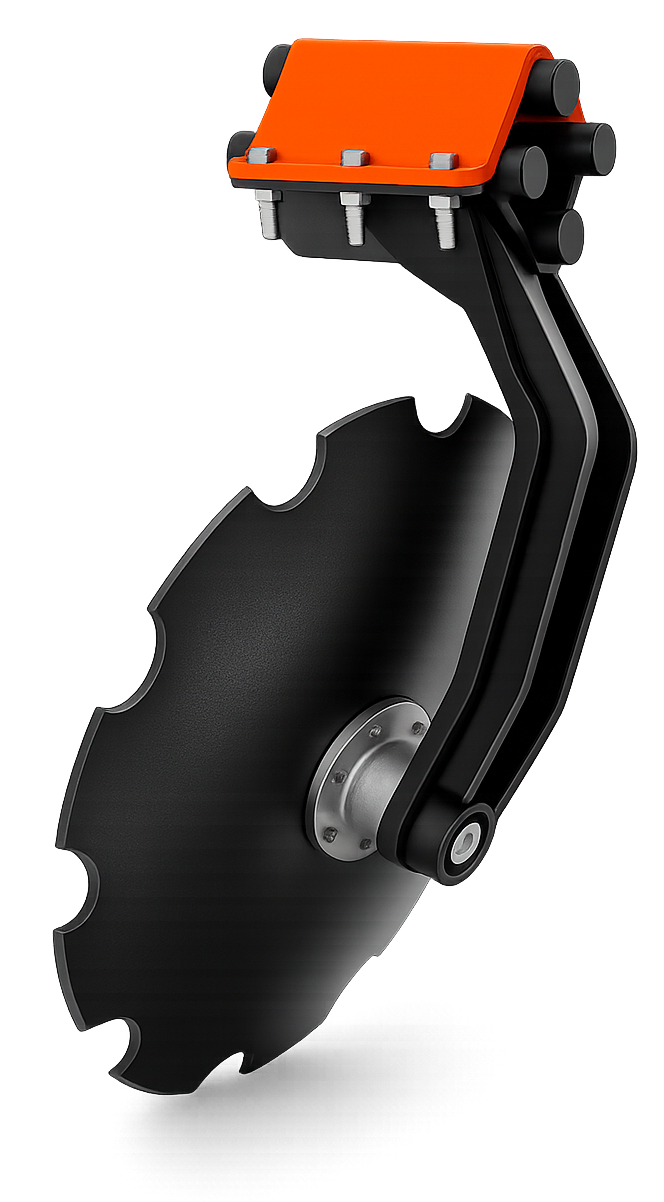

Designed with individual floating discs mounted on high resistance elastomers, it increases penetration capacity, and each disc adapts individually to the terrain, resulting in an advantage over systems with double discs. Its construction with central wheels provides great maneuverability and optimal weight distribution, an advantage at high speed and greater depth.

The design of the CultiDISC | PRO cancels out lateral forces and allows the cultivator to work straight behind the tractor, which gives us an advantage when working 100% of the terrain with GPS guidance systems.

For the PROfesional farmer

Like all Vomer equipment, the CultiDISC | PRO is designed with highly reliable components and high-strength steel. Thanks to our design and the reliability of the components, the goal of minimizing adjustments and maintenance is perfectly achieved.

The oversized sealed hubs ensure continuous work without worries about maintenance or adjustments. The non-stop system on elastomers provides smoothness, and hydraulic depth control offers advantages in use campaign after campaign.

"It handles large amounts of residue and stubble with ease"

Jesus - León

Designed for enhanced performance

Geared to work tirelessly across hundreds of hectares

01.

A trailed equipment, highly maneuverable, making more effective use of tractor power and reducing fuel consumption per hectare.

_______________________________________________________________________________________________________________________________

02.

No issues with large amounts of crop residues.

_______________________________________________________________________________________________________________________________

03.

The angle and arrangement of the discs ensure cutting and mixing across the entire working width, whether it's shallow or deeper tillage.

_______________________________________________________________________________________________________________________________

XCut Front Roller

The next Level of cutting

Increases cutting power thanks to high rotational speed, providing an additional cross-sectional cut. Maintenance-free with hydraulic adjustment.

Works with residues effortless

With a spacious design featuring increased spacing between discs and rows, it's able to handle larger amounts of crop residues and debris without clogging. Rear-mounted bearings facilitate soil flow around the disc.

With enhanced capacity

The 28" discs mounted on one of the sturdiest arms in its class allow for depths of up to 22cm, effectively turning, mixing, and cutting while managing residues like few other machines can. The lateral discs and intermediate harrows ensure an optimal finish, free from furrows or clumps.

A very resistant frame

Designed from the ground up with an extremely robust and durable frame (100x100 box), ensuring a long equipment life even under continuous and tough conditions. Few greasing points reduce maintenance. The disc bars are laterally adjustable, ensuring optimal cutting and uniform work throughout the disc's lifespan.

Intermediate wheels

and central depth control

The intermediate position of the wheels ensures a balanced weight distribution, ensuring stability and preventing the equipment from pitching during operation. The independent movement of the wheels allows for easy handling in the field, enabling the equipment to be fully raised during maneuvers or to relieve weight on the roller. The hydraulic depth control greatly simplifies operation. Optionally, the road suspension system can be incorporated.
